MAThread® screw

MAThread^® point is the solution to cross-threading problems during assembly processes. Machine screws with MAThread^® point provides great cost saving opportunities by reducing screw insertion time and eliminating costs derived from downtime, rework and scrap associated to cross-threading.

MAThread® and MATpoint^® are registered in product standards of many automotive OEMs including General Motors, Volkswagen, Daimler-Benz and their suppliers.

In addition to automotive industry, manufacturers in electronics, household appliances, telecom and electric sectors are using MAThread^® to eliminate assembly problems and lower costs in those highly competitive industries.

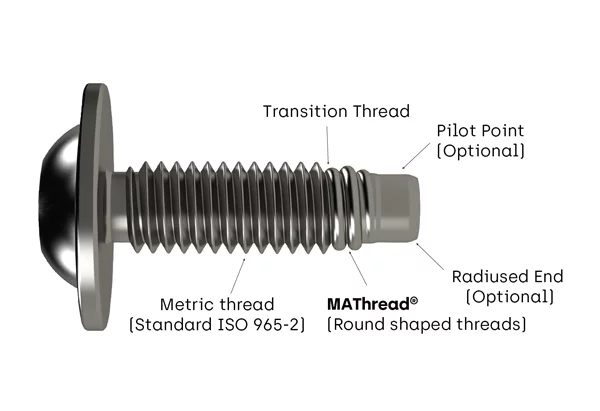

Round shape of MAThread^® point aligns the screw to fit the nut member. MAThread® point engages with optimum interference in the nut to straighten the screw up to 15°.

1. There’s misalignment of the MAThread® and the nut member.
2. MAThread^® point aligns the screw to fit into nut memeber. It eliminates the risk of cross-threading.
3. Threads drive normally into the nut eliminating the risk of downtime and rework.

MAThread^® point screws and its different variants are recommended for assemblies into:

• Nuts, tapped holes and inserts in full automated assembly lines.
• Applications susceptible to cross-threading problems.

• Prevents cross-threading and blocking problems.
• Reduces the total cost of assembly:
  • MAThread® point allows an easy and rapid insertion without reducing the installation speed.
  • Eliminates the cost caused by failures, rework, scrap and downtime associated to cross-threading.
• MAThread® performance is unaffected by installation speed.
• MAThread® point is the best alternative to the standard Dog Point. In comparison with the standard Dog Point, MAThread® achieves 100% success in alignment.

Need to get in touch? Contact us to discuss your application.

We produce MAThread^® screws on special demand to fit your exact requirements. There are different point designs depending on the application requirements:

'P' Point MAThread^® for applications in which point length is not a problem.

MATpoint^® is compatible with most of the applications, it absorbs misalignments up to 12º.

VS (Very Short) MATpoint^® is ideal for application with limited length of engagement, it absorbs misalignments up to 7º.

For further information on options available and hole configuration, please contact our application engineers.
