CAD 3D files download

To ensure components and joints fit your application properly, we offer 3D models of our licensed screws for plastic and metal assembly. Download CAD files for popular products like TAPTITE 2000®, TAPTITE II®, REMFORM®, REMFORM® II HS™, REMFORM® II F™, FASTITE® 2000™ and POWERLOK® and more, to use directly in your designs.

Our 3D models are in CAD format and include detailed part characteristics. Downloads are available for a wide range of head designs, recess types, and screw dimensions.

For custom dimensions or additional guidance in selecting the best screws, our Application Engineers are here to assist you.

Select the product category

Screws for plastic

Screws for metal

Screws for thin metal

Select the type of thread

REMFORM® screw

Thread forming screw into thermoplastic in applications with high mechanical requirements.

REMFORM® II F™ screw

For the assembly of very hard plastics and thermosets, or for applications with a short length of thread engagement.

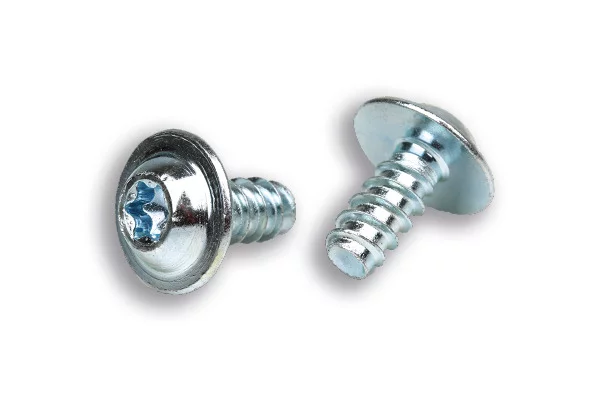

REMFORM® II HS™ screw

Thread forming screw into reinforced plastic and high demanding applications.

CELOspArk® screw

Thread forming screw for thermoplastics in applications with low mechanical requirements.

Select the type of thread

TAPTITE 2000® screws

Thread rolling screw for the assembly of die casting parts (aluminum, zamak…).

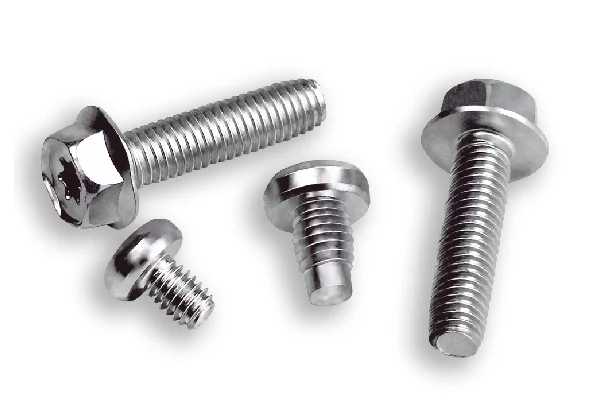

POWERLOK® screws

Locking screw to prevent vibration loosening resistance in tapped holes.

REMFORM® II F™ screw for light alloys

Thread rolling screw for magnesium die casting and aluminum profiles.

TAPTITE II® screw

Thread rolling screw for the assembly of steel parts.

Select the base material of the assembly and your application requirements.

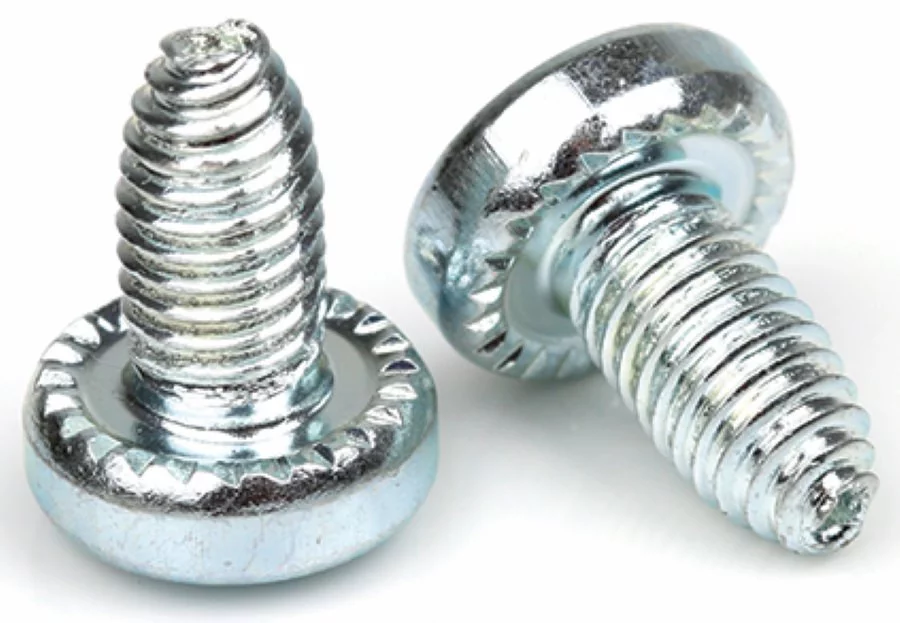

FASTITE® 2000™ screw

Thread rolling screw for thin metal sheet assembly. Excellent resistance to stripping.

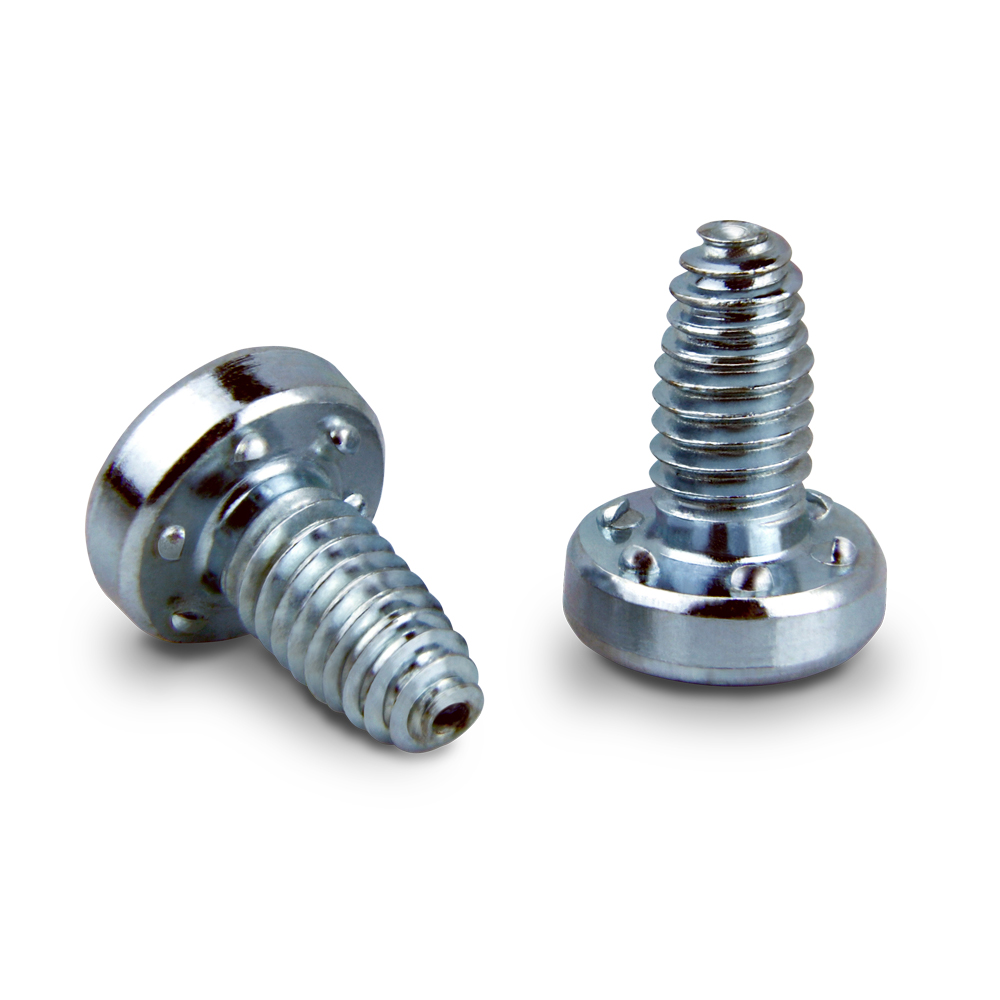

EXTRUDE-TITE® screw

Thread rolling screw for grounding assemblies. Metric thread configuration.

REMFORM® screw

RF81T

REMFORM® Zinc plated screw, Pan head TORX®

RF82T

REMFORM® Zinc plated screw, Countersunk head TORX®

RF87T

REMFORM® Zinc plated screw, Pan head flange TORX®

RFX81T

REMFORM® Zinc plated screw, Pan head TORX®, INOX A2

RF81TP

REMFORM® Zinc plated screw, Pan head TORX PLUS®

REMFORM® II F™ screw

F281PA

REMFORM® II F™ Zinc plated screw, Pan head TORX PLUS® AUTOSERT®

F287PA

REMFORM® II F™ Zinc plated screw, Pan head flange TORX PLUS® AUTOSERT®

REMFORM® II HS™ screw

HS81PA

REMFORM® II HS™ Zinc plated screw, Pan head TORX PLUS® AUTOSERT®

HS82PA

REMFORM® II HS™ Zinc plated screw, Countersunk head TORX PLUS® AUTOSERT®

HSX81PA

REMFORM® II HS™ Zinc plated screw, Pan head TORX PLUS® AUTOSERT®, INOX A2

HS87PA

REMFORM® II HS™ Zinc plated screw, Pan head flange TORX PLUS® AUTOSERT®

CELOspArk® screw

SP81P

CELOspArk® Zinc plated screw, Pan head TORX PLUS®

SP81T

CELOspArk® Zinc plated screw, Pan head TORX®

SP81Z

CELOspArk® Zinc plated screw, Pan head POZI

SP87P

CELOspArk® Zinc plated screw, Pan head flange TORX PLUS®

SP87T

CELOspArk® Zinc plated screw, Pan head flange TORX®

SP87Z

CELOspArk® Zinc plated screw, Pan head flange POZI

SP82T

CELOspArk® Zinc plated screw, Countersunk head TORX®

SP82Z

CELOspArk® Zinc plated screw, Countersunk head POZI

TAPTITE 2000® screws

NT85T

TAPTITE 2000® Zinc plated screw, Pan head TORX®, CORFLEX® N™

T285PA

TAPTITE 2000® Zinc plated screw, Pan head TORX PLUS® AUTOSERT®

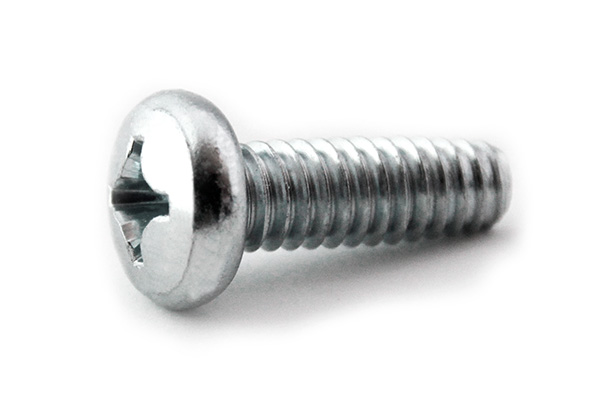

T251H

TAPTITE 2000® screw, Pan head PHILLIPS (inch)

NT85PA

TAPTITE 2000® Zinc plated screw, Pan head TORX PLUS® AUTOSERT®, CORFLEX® N™

POWERLOK® screws

PL78T

POWERLOK® screw, hexagonal flange TORX®

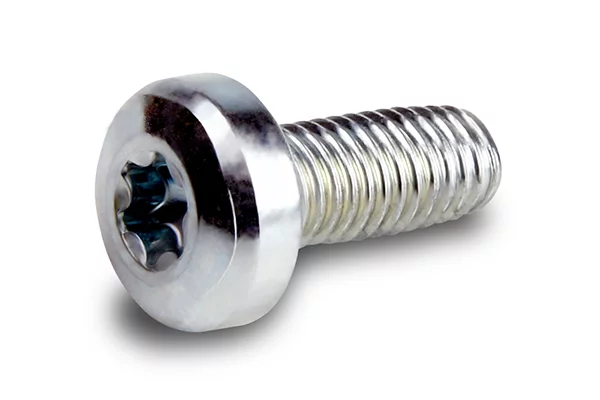

PL85PA

POWERLOK® screw, pan head TORX PLUS® AUTOSERT®

REMFORM® II F™ screw

F281PA

REMFORM® II F™ Zinc plated screw, Pan head TORX PLUS® AUTOSERT®

F287PA

REMFORM® II F™ Zinc plated screw, Pan head flange TORX PLUS® AUTOSERT®

TAPTITE II® screw

TT85T

TAPTITE II® Zinc plated screw, Pan head TORX®

TT85Z

TAPTITE II® Zinc plated screw, Pan head POZI

TT65T

TAPTITE II® Zinc plated screw, Countersunk head TORX®

TT65Z

TAPTITE II® Zinc plated screw, Countersunk head POZI

TT78

TAPTITE II® Zinc plated screw, Hexagonal flange head

TT22T

TAPTITE II® Zinc plated screw, Pan head conical washer, TORX®

TT12

TAPTITE II® Zinc plated screw, Cylindrical socket head

FASTITE® 2000™ screw

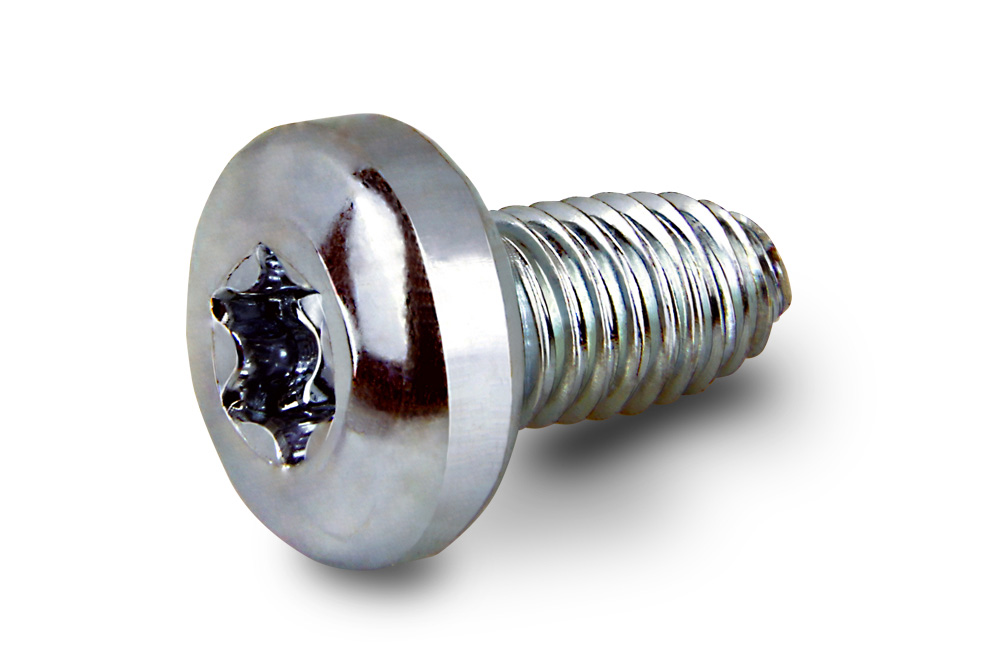

FT85T

FASTITE® 2000™ Zinc plated screw, Pan head with serrations TORX®

FT85Z

FASTITE® 2000™ Zinc plated screw, Pan head with serrations, POZI

FTA85Z

FASTITE® 2000™ Zinc plated screw, Pan head POZI, self-drilling point

FTPG

FASTITE® 2000™ Zinc plated screw, hexagonal flange head CUT-OFF point

EXTRUDE-TITE® screw

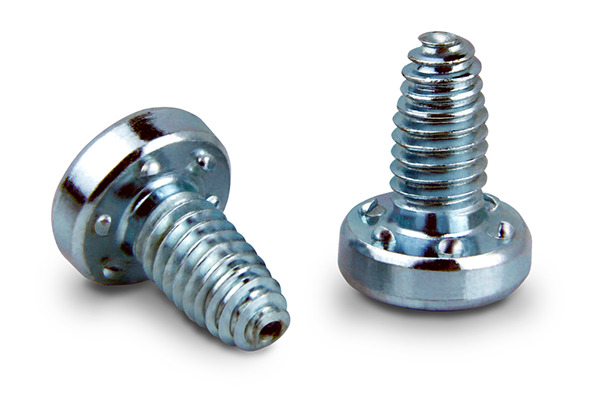

EX85T

EXTRUDE-TITE® Zinc plated screw, Pan head + serrations, TORX®
