TWINPLAST Zinc plated screw, Pan head flange POZI , CUT-OFF point

For the assembly on very thin plastic elements, especially blown plastic parts.

TWINPLAST thread design and the sharp point allow the screw to be inserted without pilot holes or boss. It can be used when plastic thickness is between 1/3 and 2/3 of the screw diameter.

Apart from the references available in stock, we produce customized screws to fit your exact requirements.

twinplast-tp88z
twinplast-tp88z-screw-drawing
twinplast-tp88z
twinplast-tp88z-screw-drawing
Filter by:
Reference
310TP88Z shopping_cart 3.0 10 5.60 POZI Z1
3512TP88Z shopping_cart 3.5 12 7.00 POZI Z2
416TP88Z shopping_cart 4.0 16 7.50 POZI Z2
4519TP88Z shopping_cart 4.5 19 8.20 POZI Z2

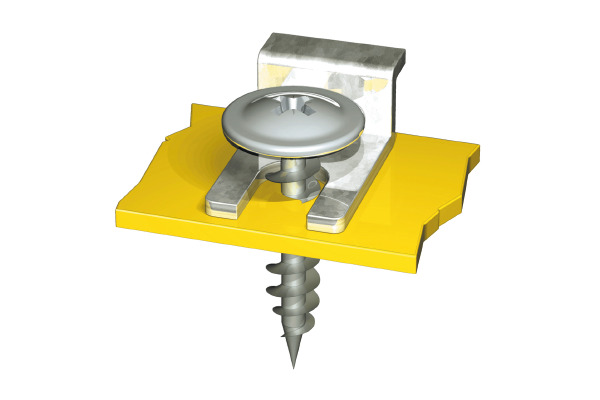

twinplast-screw

TWINPLAST screws are recommended for the assembly of very thin plastic elements, especially blown plastic parts.
